600 Lbs Ss304l Stainless Steel Slip On Flange Forged

Brand Name : XF

Model Number : ½" (15 NB) to 48" (1200NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

Certification : TUV , ISO9001

Place of Origin : CHINA

MOQ : 100PCS

Price : --

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 2000-3000 Tons per month

Delivery Time : 30 DAYS -40DAYS

Packaging Details : No Fumigate or Fumigate Plywood/Wood Pallet or Case

Carbon steel : ,S235JRG2,P245GH ,P250GH,A105,SS400,SF440

Stainless Steel : F304 F304L F316 F316L

Size : 1/2" NB TO 48"NB

Pressure : 150 LBS, 300 LBS, 600 LBS, 900 LBS,1500LBS,2500LBS

Surface Treatment : Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc,Hot dipped Galvanized

Packing : No Fumigate or Fumigate Plywood/Wood Pallet or Case

Usage : Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

Contact Now

ANSI B16.5 CLASS 150 FLANGE SLIP ON A105 CARBON STEEL AND SS304L STAINLESS STEEL FORGED FLANGE

ASME/ANSI B16.5 provides

  • weld neck
  • slip-on
  • socket weld
  • threaded
  • lap joint
  • blind

flange dimensions for pipes ranging 1/2" to 24" - in classes ranging 150 to 2500. Note that the ratings are in steps with terminology like ASME class xxx or API xxxx.

In general you need to specify the schedule (thickness) of the connected pipe when it is being butt welded to the flange. Socket welded and threaded connections is unaffected by wall thickness and should only require the OD.

Nominal Pipe Size
NPS
(inches)		 Class 150
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-1/2 4 1/2 0.62 2-3/8
3/4 3-7/8 4 1/2 0.62 2-3/4
1 4-1/4 4 1/2 0.62 3-1/8
1-1/4 4-5/8 4 1/2 0.62 3-1/2
1-1/2 5 4 1/2 0.62 3-7/8
2 6 4 5/8 0.75 4-3/4
2-1/2 7 4 5/8 0.75 5-1/2
3 7-1/2 4 5/8 0.75 6
3-1/2 8-1/2 8 5/8 0.75 7
4 9 8 5/8 0.75 7-1/2
5 10 8 3/4 0.88 8-1/2
6 11 8 3/4 0.88 9-1/2
8 13-1/2 8 3/4 0.88 11-3/4
10 16 12 7/8 1 14-1/4
12 19 12 7/8 1 17
14 21 12 1 1.12 18-3/4
16 23-1/2 16 1 1.12 21-1/4
18 25 16 1-1/8 1.25 22-3/4
20 27-1/2 20 1-1/8 1.25 25
24 32 20 1-1/4 1.38 29-1/2
  • 1 inch = 25.4 mm
Nominal Pipe Size
NPS
(inches)		 Class 300
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-3/4 4 1/2 0.62 2-5/8
3/4 4-5/8 4 5/8 0.75 3-1/4
1 4-7/8 4 5/8 0.75 3-1/2
1-1/4 5-1/4 4 5/8 0.75 3-7/8
1-1/2 6-1/8 4 3/4 0.88 4-1/2
2 6-1/2 8 5/8 0.75 5
2-1/2 7-1/2 8 3/4 0.88 5-7/8
3 8-1/4 8 3/4 0.88 6-5/8
3-1/2 9 8 3/4 0.88 7-1/4
4 10 8 3/4 0.88 7-7/8
5 11 8 3/4 0.88 9-1/4
6 12-1/2 12 3/4 0.88 10-5/8
8 15 12 7/8 1 13
10 17-1/2 16 1 1.12 15-1/4
12 20-1/2 16 1-1/8 1.25 17-3/4
14 23 20 1-1/8 1.25 20-1/4
16 25-1/2 20 1-1/4 1.38 22-1/2
18 28 24 1-1/4 1.38 24-3/4
20 30-1/2 24 1-1/4 1.38 27
24 36 24 1-1/2 1.62 32
Nominal Pipe Size
NPS
(inches)		 Class 400
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-3/4 4 1/2 0.62 2-5/8
3/4 4-5/8 4 5/8 0.75 3-1/4
1 4-7/8 4 5/8 0.75 3-1/2
1-1/4 5-1/4 4 5/8 0.75 3-7/8
1-1/2 6-1/8 4 3/4 0.88 4-1/2
2 6-1/2 8 5/8 0.75 5
2-1/2 7-1/2 8 3/4 0.88 5-7/8
3 8-1/4 8 3/4 0.88 6-5/8
3-1/2 9 8 7/8 1 7-1/4
4 10 8 7/8 1 7-7/8
5 11 8 7/8 1 9-1/4
6 12-1/2 12 7/8 1 10-5/8
8 15 12 1 1.12 13
10 17-1/2 16 1-1/8 1.25 15-1/4
12 20-1/2 16 1-1/4 1.38 17-3/4
14 23 20 1-1/4 1.38 20-1/4
16 25-1/2 20 1-3/8 1.5 22-1/2
18 28 24 1-3/8 1.5 24-3/4
20 30-1/2 24 1-1/2 1.62 27
24 36 24 1-3/4 1.88 32
Nominal Pipe Size
NPS
(inches)		 Class 600
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-3/4 4 1/2 0.62 2-5/8
3/4 4-5/8 4 5/8 0.75 3-1/4
1 4-7/8 4 5/8 0.75 3-1/2
1-1/4 5-1/4 4 5/8 0.75 3-7/8
1-1/2 6-1/8 4 3/4 0.88 4-1/2
2 6-1/2 8 5/8 0.75 5
2-1/2 7-1/2 8 3/4 0.88 5-7/8
3 8-1/4 8 3/4 0.88 6-5/8
3-1/2 9 8 7/8 1 7-1/4
4 10-3/4 8 7/8 1 8-1/2
5 13 8 1 1.12 10-1/2
6 14 12 1 1.12 11-1/2
8 16-1/2 12 1-1/8 1.25 13-3/4
10 20 16 1-1/4 1.38 17
12 22 20 1-1/4 1.38 19-1/4
14 23-3/4 20 1-3/8 1.5 20-3/4
16 27 20 1-1/2 1.62 23-3/4
18 29-1/4 20 1-5/8 1.75 25-3/4
20 32 24 1-5/8 1.75 28-1/2
24 37 24 1-7/8 2 33
Nominal Pipe Size
NPS
(inches)		 Class 900
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/2 4-3/4 4 3/4 0.88 3-1/4
3/4 5-1/8 4 3/4 0.88 3-1/2
1 5-7/8 4 7/8 1 4
1-1/4 6-1/4 4 7/8 1 4-3/8
1-1/2 7 4 1 1.12 4-7/8
2 8-1/2 8 7/8 1 6-1/2
2-1/2 9-5/8 8 1 1.12 7-1/2
3 9-1/2 8 7/8 1 7-1/2
4 11-1/2 8 1-1/8 1.25 9-1/4
5 13-3/4 8 1-1/4 1.38 11
6 15 12 1-1/8 1.25 12-1/2
8 18-1/2 12 1-3/8 1.5 15-1/2
10 21-1/2 16 1-3/8 1.5 18-1/2
12 24 20 1-3/8 1.5 21
14 25-1/4 20 1-1/2 1.62 22
16 27-3/4 20 1-5/8 1.75 24-1/2
18 31 20 1-7/8 2 27
20 33-3/4 20 2 2.12 29-1/2
24 41 20 2-1/2 2.62 35-1/2
Nominal Pipe Size
NPS
(inches)		 Class 1500
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/2 4-3/4 4 3/4 0.88 3-1/4
3/4 5-1/8 4 3/4 0.88 3-1/2
1 5-7/8 4 7/8 1 4
1-1/4 6-1/4 4 7/8 1 4-3/8
1-1/2 7 4 1 1.12 4-7/8
2 8-1/2 8 7/8 1 6-1/2
2-1/2 9-5/8 8 1 1.12 7-1/2
3 10-1/2 8 1-1/8 1.25 8
4 12-1/4 8 1-1/4 1.38 9-1/2
5 14-3/4 8 1-1/2 1.62 11-1/2
6 15-1/2 12 1-3/8 1.5 12-1/2
8 19 12 1-5/8 1.75 15-1/2
10 23 12 1-7/8 2 19
12 26-1/2 16 2 2.12 22-1/2
14 29-1/2 16 2-1/4 2.38 25
16 32-1/2 16 2-1/2 2.62 27-3/4
18 36 16 2-3/4 2.88 30-1/2
20 38-3/4 16 3 3.12 32-3/4
24 46 16 3-1/2 3.62 39
Nominal Pipe Size
NPS
(inches)		 Class 2500
Diameter of
Flange
(inches)		 No.
of
Bolts		 Diameter of
Bolts
(inches)		 Diameter of
Bolt Holes
(inches)		 Bolt
Circle
(inches)
1/2 5-1/4 4 3/4 0.88 3-1/2
3/4 5-1/2 4 3/4 0.88 3-3/4
1 6-1/4 4 7/8 1 4-1/4
1-1/4 7-1/4 4 1 1.12 5-1/8
1-1/2 8 4 1-1/8 1.25 5-3/4
2 9-1/4 8 1 1.12 6-3/4
2-1/2 10-1/2 8 1-1/8 1.25 7-3/4
3 12 8 1-1/4 1.38 9
4 14 8 1-1/2 1.62 10-3/4
5 16-1/2 8 1-3/4 1.88 12-3/4
6 19 8 2 2.12 14-1/2
8 21-3/4 12 2 2.12 17-1/4
10 26-1/2 12 2-1/2 2.62 21-1/4
12 30 12 2-3/4 2.88 24-3/8

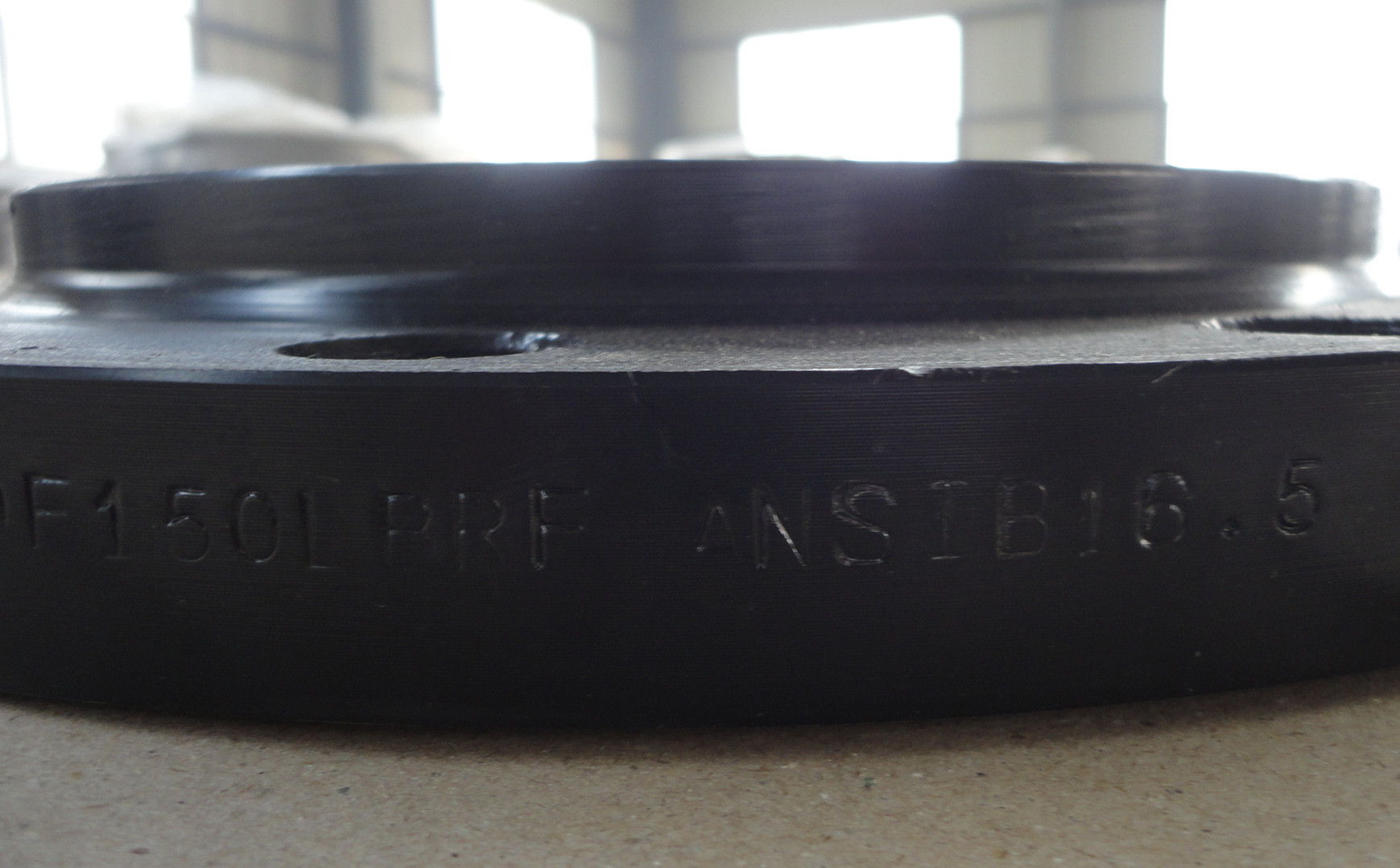

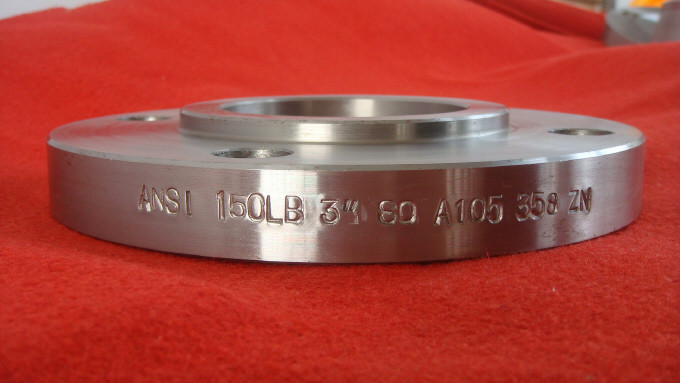

600 Lbs Ss304l Stainless Steel Slip On Flange Forged600 Lbs Ss304l Stainless Steel Slip On Flange Forged600 Lbs Ss304l Stainless Steel Slip On Flange Forged
